Ask for Price

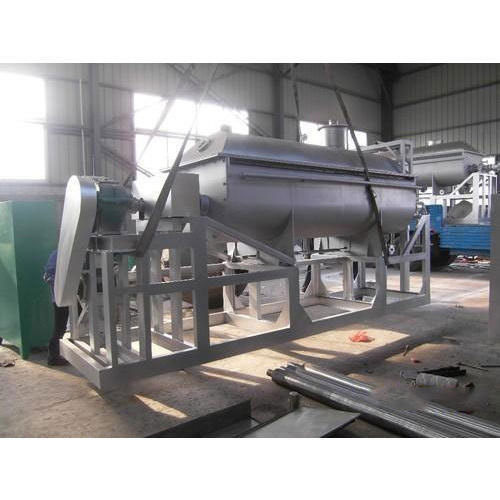

The mechanically stirred up Paddle Dryers have indirect heat transfer device, which are used utilized for drying wet materials in a number of industrial processes. These dryers are made advanced by integrating them with Dual counter-rotating shafts and inter meshing wedge shape paddles to ensure excellent mixing production and optimize heat transfer. This dryer range is accomplished with a vapour tight construction to make it suitable for applications with volatile organic compounds and perilous materials. The heated rotating blades consistently agitate the wet feed for proper boiling off the moisture and leave the wet material dried.

Features

• Provided with efficient rotary joint for injecting heating media into agitator
• Superior evaporation capacity
• Optimum thermal efficiency
• Comprises of a horizontal and cylindrical vessel containing a longitudinal rotor or paddle assembly
• The dryer has a high speed, indirect contact, thin layered paddle processor
• Efficient to take temperature stresses in the process of vacuum drying
• Quick manual discharge valve opening
• Equipped with chargeable door for minimal manual handling
• Accomplished with fully prewired control panel for ease of performance taking into account safety factors
• Consummate with external jacket sections for flowing heat transfer fluid
• Radial paddles are fastened to rotor shaft by means of locknuts

Product Specification

• Capacity: 25 L TO 10 kL
• Max Temperature: 500 degree centigrade
• Automatic Grade: Automatic

Applications

Yes! I am interested

Rotary Vacuum Dryers

Ask for Price

The Rotary Vacuum Dryers are superiorly used for impeccably drying filter cake, press cake, slurry and various other materials at low temperature that consents to agitation. The dryer has a conventional design, which is incorporated with jacketed cylinder, charge & discharge opening, outboard bearing, counter-weighted hinged discharge doors, internally sealed stuffing boxes, locking devices, internal revolving agitator and dust-tight housing. These dryers allow to dry heat sensitive materials at the temperature below boiling points of solvents and water.

Features

• Highly thermal efficient
• Low energy consumption
• Capable of sweeping entire internal surface that allows the material particles to come in contact with heated surface
• Equipped with helical faced blades mounted on agitator shaft, which thoroughly mixes the material with shearing action
• Minimal dusting and tumbling
• Heated center tube and paddle arms shortens the drying time
• Accomplished with mechanical support skids
• Agitator accelerates the material discharge
• Provided with a bag filter preventing the material loss after drying process
• Brine refrigerant through the jacket offers cooling

Applications

Specifications

• Size range varies between 100 liters and 20,000 liters
• Automatic Grade: Automatic
• Design: Customized
• Material: SS
